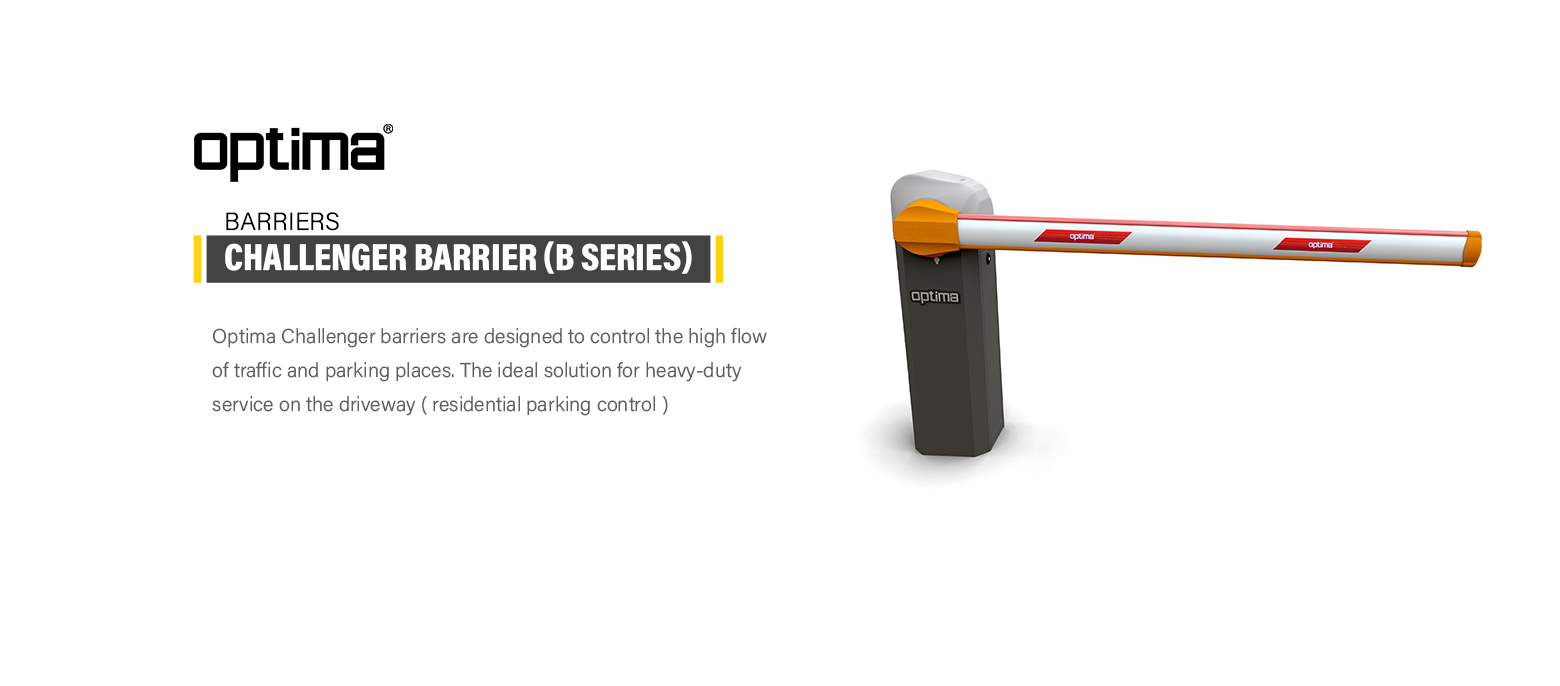

Challenger Electromechanical Arm Barriers
B300 / B600 / B800


Arm width

For B300  2-4 m ,  For B600  4-6 m , For B800  6-8 m

Enviromental durability

Galvanized steel plate , RAL7012 powder coated , furnaced

Type of steel

DX51D+Z (Galvanised steel )


220 Volt, 1 Phase , 50-60 Hz

Power failure

Release gear by Allen key


For B300: 3 second  , For B600: 6 second , For B800: 8 second

 Push button box

Raise , lower function

Extra I/O

Enough I/O's to connect any card reader , extra override keyboard etc. later on

Proximity sensor

Available to sense the position of the barrier

Motor Power

550 Watt

Enviromental condition

-25 °C and +65 °C, %95 non-condensing humidity

Dual vehicle safety loop detector (optional)

This detector is used for safety

Traffic light (optional)

200mm  diameter  Red/Green LED and  2 m height  electrostatic powder coated steel post

Extra button (optional)

Emergency stop function

Working power failure (optional)

1 kVa UPS outside the cabinet

Flashing Light (optional)

Flashes while the arm is in motion
