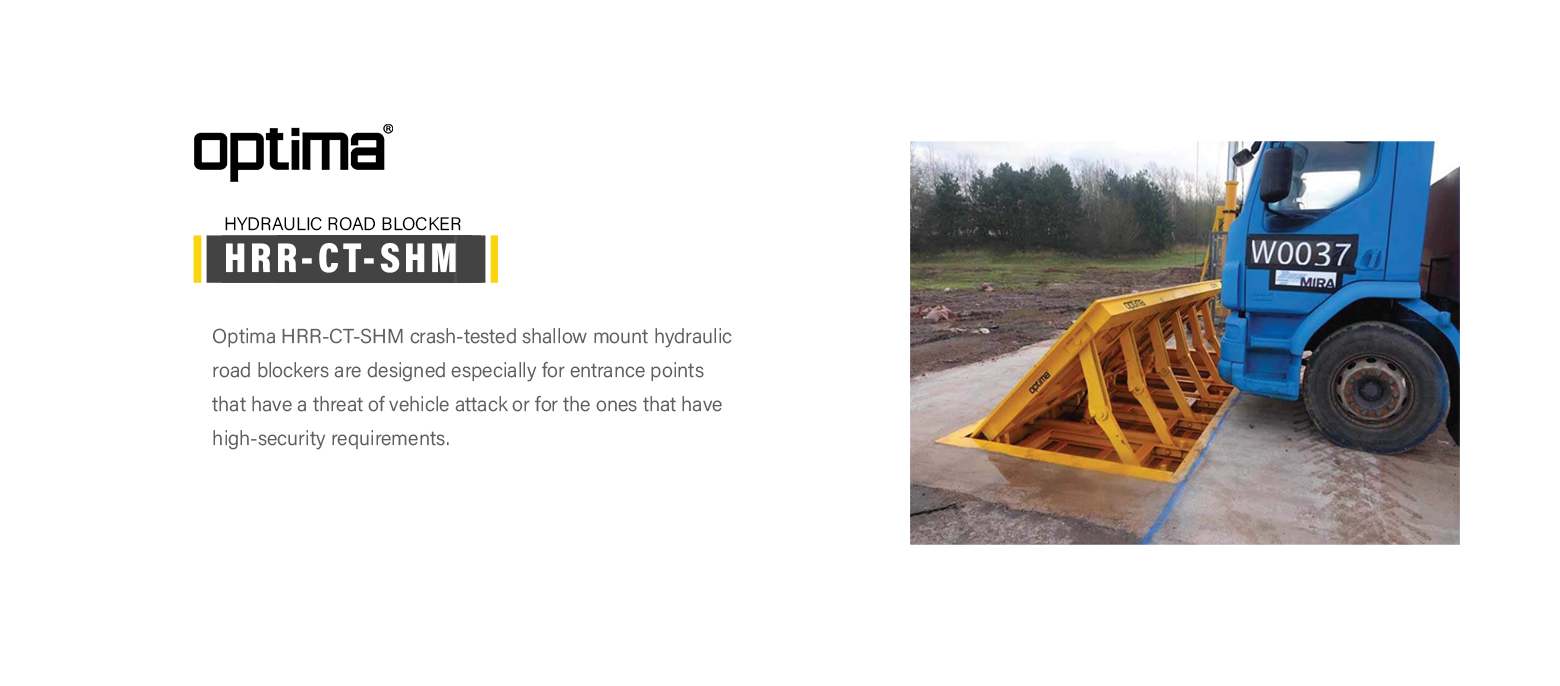

Shallow Mount Hydraulic Road Blocker
HRR-CT-SHM (Zero Penetration)

SPECIFICATIONS

 Test parameters

PAS68: V/7500[N3]/80/90:0.0/0

 Equivalent to

K12, M50, ASTM F2656, IWA14-1

 Height when raised

1200 mm

 Width

2000 - 6000 mm

 Color

RAL1028 traffic yellow / RAL9005 black

 Axle load resistance

50 tons per axle

 Structure

Heavy duty

 Top plate

Plain, or Checkered (optional), painted yellow with black stripes

 Type of steel

S235

 Traffic light

Red/green LED, 200 mm diameter, steel post 2 m height and electrostatic powder coated

 Hinges

Heavy duty, special design hardened steel

Power

380 V, 3 Phase, 50-60 Hz (or 220 V/ 440 V etc., three phase, 50-60 Hz optional by a transformer)

 Power failure

Manual hand pump, (or Hydraulic accumulator, DC motor and batteries or UPS (optional))

 Speed

3-5 seconds, in emergency 1.5 seconds (optional)

 Desktop keyboard

Raise, lower, emergency stop, key operated, ‘keyboard in use’ light indicator

 Extra I/O at the PLC

Enough I/O’s to connect any card reader, extra override keyboard etc. later on

 Proximity sensor

Available to sense the position of the blocker

 Dual vehicle safety loop   detector

This detector is used for safety

Motor Power

Min 4 KW, 1500 rpm

 Environmental conditions

-25 °C and +65 °C, %95 non-condensing humidity

 Environmental conditions   (optional)

-40 °C and +70 °C, %95 non-condensing humidity
