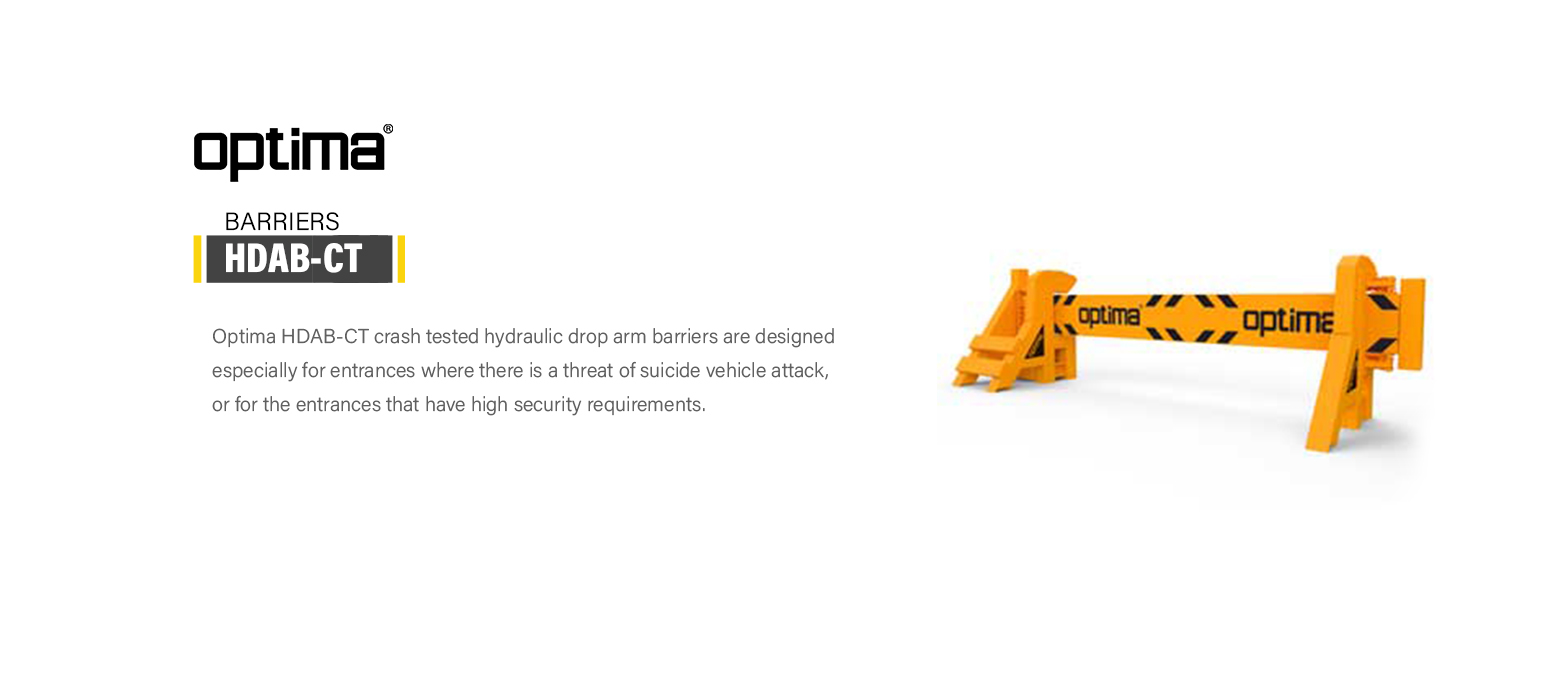

Hydraulic Drop Arm Barrier HDAB-CT
(Zero Penetration)


Test parameters

PAS68: V/7500[N3]/80/90:0.0/2.1

Equivalent to

K12, M50, ASTM F2656, IWA14-1

Arm width

3000-7500 mm


RAL1028 traffic yellow / RAL9005 black


Heavy duty

Type of steel


Traffic light

Red/green LED, 200 mm diameter, steel post 2 mt height and electrostatic powder coated


Heavy duty, special design hardened steel


380 V, 3 Phase, 50-60 Hz (or 220 V/ 440 V etc., three phase, 50-60 Hz optional by a transformer)

Power failure

Manual hand pump, (or Hydraulic accumulator, DC motor and batteries or UPS (optional))


12-15 sec

Desktop keyboard

Raise, lower, emergency stop, key operated, ‘keyboard in use’ light indicator

Extra I/O at the PLC

Enough I/O’s to connect any card reader, extra override keyboard etc. later on

Proximity sensor

Available to sense the position of the barrier

Dual vehicle safety loop detecto

This detector is used for safety

Motor Power

Min 4 KW, 1500 rpm

Environmental conditions

-15 °C and +65 °C, %95 non-condensing humidity

Enviromental conditions (optional)

-40 °C abd +70 °C, %95 non-condensing humidity
