SPECIFICATIONS

Model Name

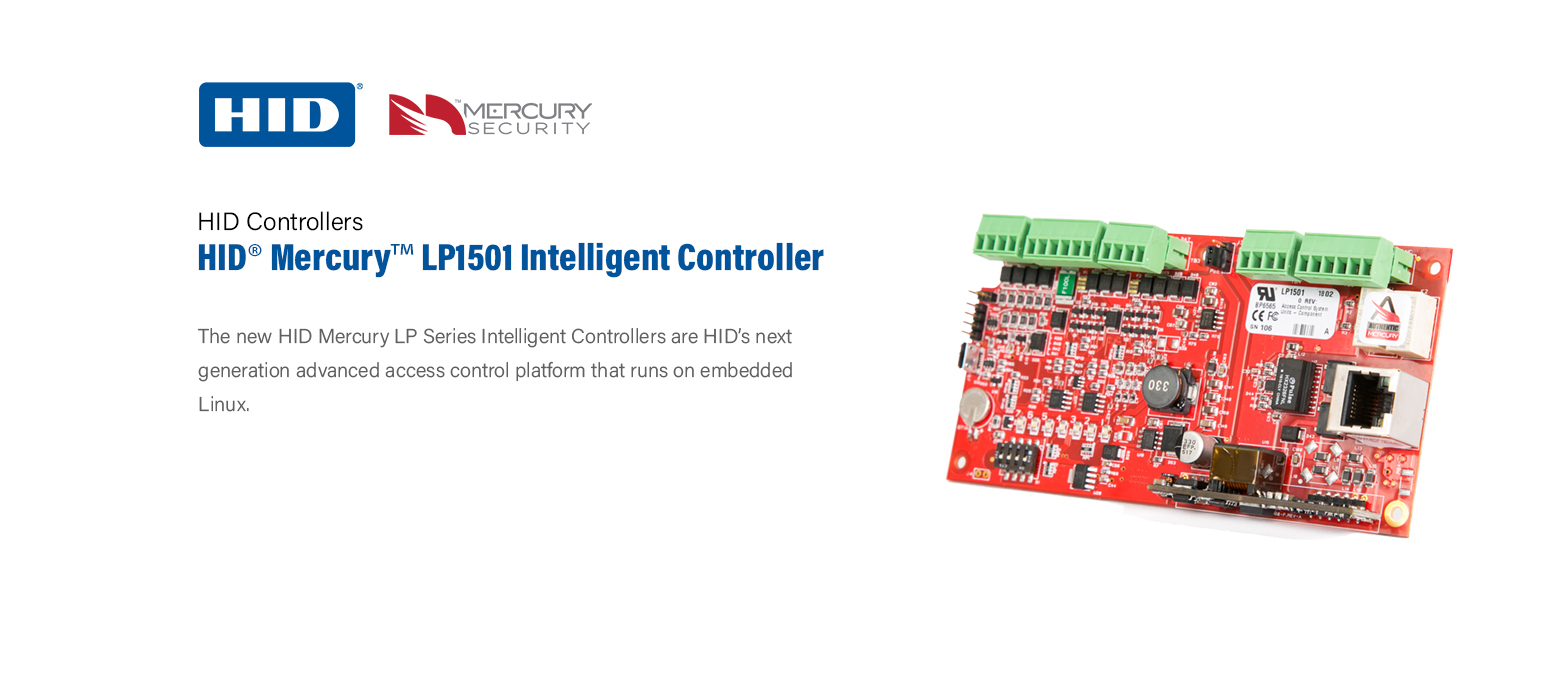

HID Mercury LP1501 Intelligent Controller

Power Input

PoE (12.95 W), compliant to IEEE 802.3af or PoE+ (25 W), compliant to IEEE 802.3at or 12 VDC +/- 10 %, 1.8 A maximum

Power Output

PoE: 12 VDC @ 625 mA including reader and AUX output *

PoE+ or external 12 VDC: 12 VDC @ 1.25 A including reader and AUX output *

* Excluding micro USB port

Micro USB Port

5 VDC maximum (deduct 270 mA from reader and Auxiliary Power output)

Battery

 SRAM Backup Battery, rechargeable

Host Communication

Ethernet: 10-BaseT/100Base-TX

Inputs

Two unsupervised/supervised, Programmable End-of-Line resistors, 1k/1k ohm, 1 %, ¼ watt standard. One unsupervised input dedicated for cabinet tamper

Output Relays

Two relays: Form-C contacts: 2 A @ 30 VDC, resistive

Reader Power

 12 VDC ± 10 %: PoE, PoE+ or local power supply, 300 mA maximum

Temperature

Storage: -55° to 85° C

Operating: 0° to 70° C

Humidity

5 to 95% RHNC

Dimensions

5.5 in. (140 mm) W x 2.75 in. (70 mm) L x 0.96 in. (24 mm) H without bracket

5.5 in. (140 mm) W x 3.63 in. (92 mm) L x 1.33 in. (34 mm) H with bracket

Weight

3.6 oz. (103 g) without bracket; 4.43 oz. (125.5 g) with bracket

Product Compliance

UL 294 Recognized1, FCC Part 15 Class A, CE Compliant, RoHS (2011/65/EU & 2015/863), EU REACH (1907/2006), California Proposition 65, NIST Certified
Encryption

The product is warranted free from defects in material and workmanship under normal use and service with proper maintenance for one year from the date of factory shipment.
