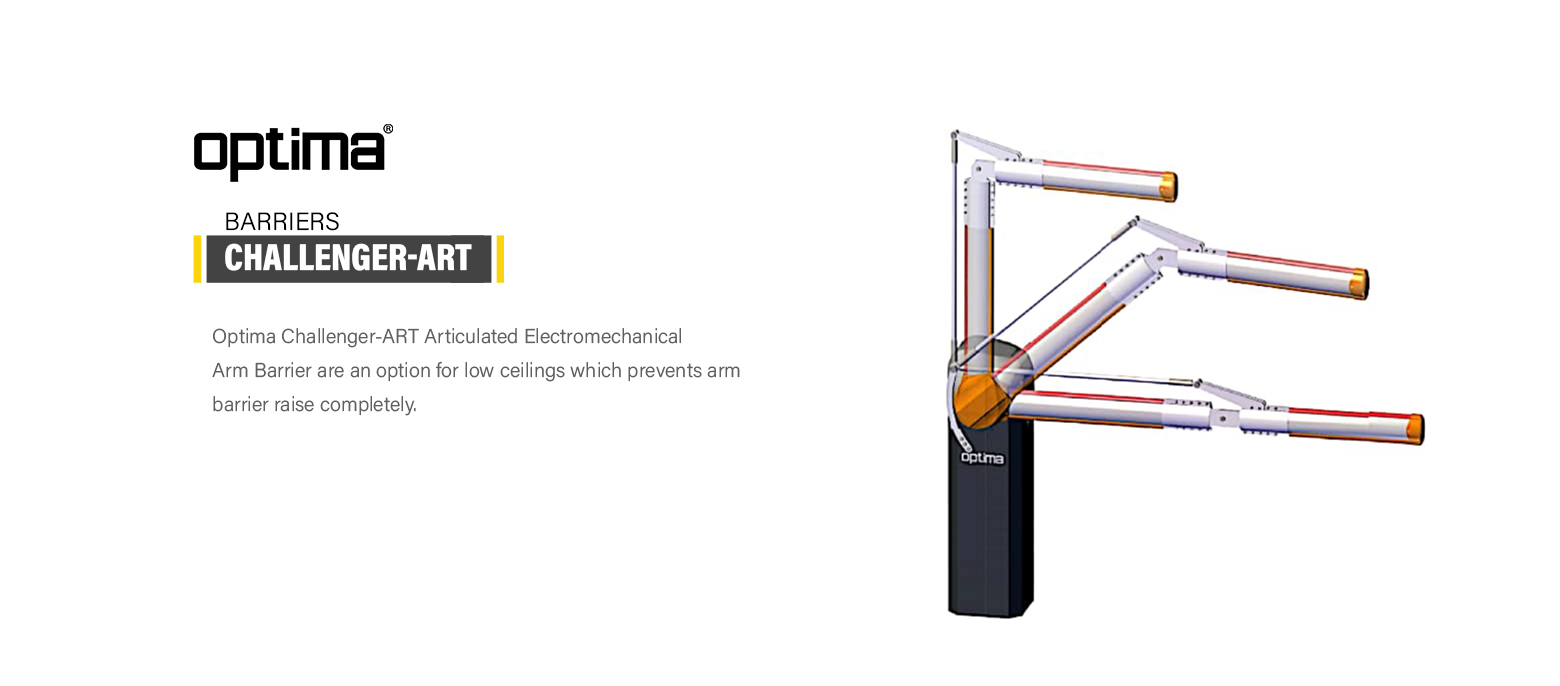

Challenger-ART Electromechanical
Articulated Arm Barrier

SPECIFICATIONS

Arm width

Up to 4 meter

Enviromental durability

Galvanized steel plate , RAL7012 powder coated , furnaced

Type of steel

DX51D+Z (Galvanised steel )

Power

220 Volt, 1 Phase , 50-60 Hz

Power failure

Release gear by Allen key

Speed

Up to 4 meter arm widht : 6 second

Push button box

Raise , lower function

Extra I/O

Enough I/O's to connect any card reader , extra override keyboard etc. later on

Proximity sensor


Available to sense the position of the barrier

Motor Power

550 Watt

Enviromental condition

-25 °C and +65 °C, %95 non-condensing humidity

Dual vehicle safety loop detector (optional)

This detector is used for safety

Traffic light (optional)

200mm diameter Red/Green LED and 2 m height electrostatic powder coated steel post

Extra button (optional)

Emergency stop function

Working power failure (optional)

1 kVa UPS outside the cabinet

Flashing Light (optional)


Flashes while the arm is in motion
